Article number:

5270302

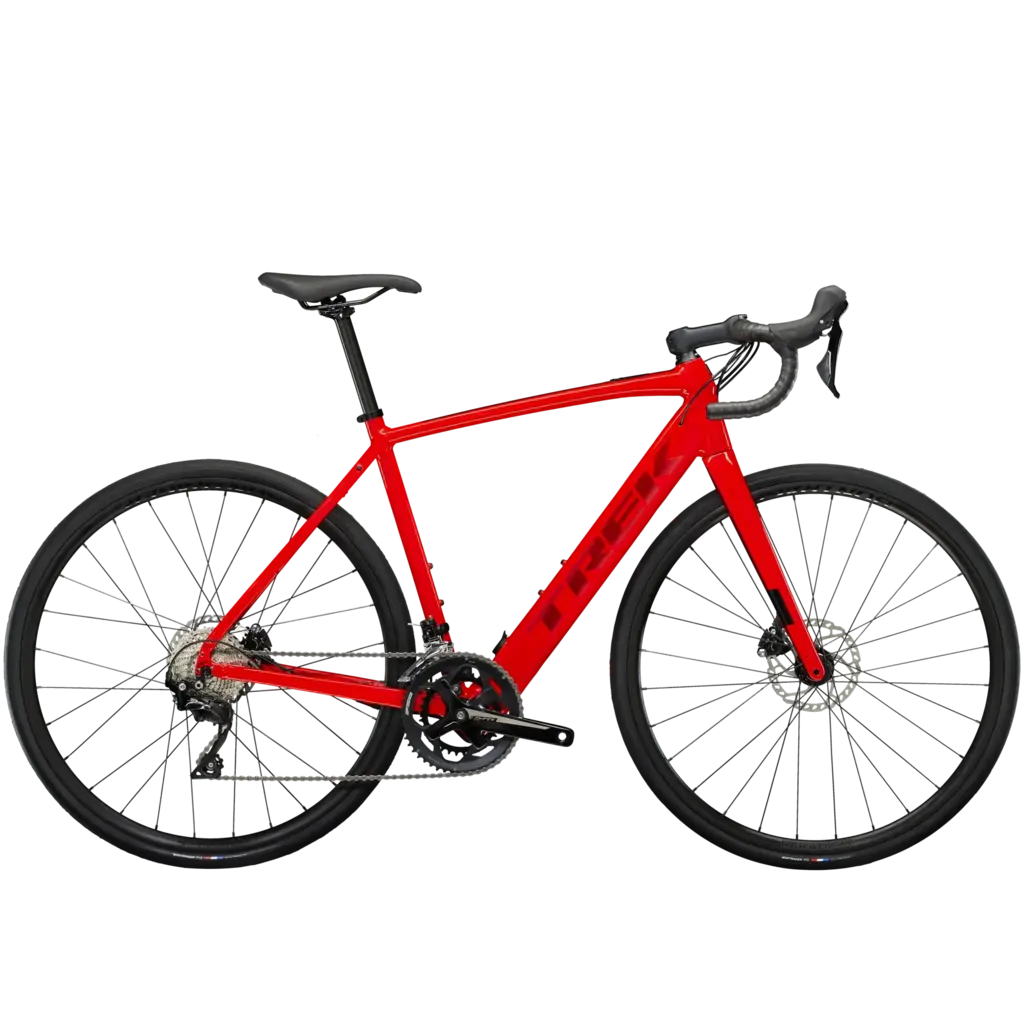

The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.

You want a high-value e-road bike that looks and rides like a traditional road bike. You’re looking for a natural-feeling boost that adds extra capability to training rides and club rides.

A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 25 km/h with a 250 Wh battery for a range of up to 90 kilometres per charge. Plus a workhorse Shimano 105 2×11 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.

The Domane+ AL’s streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.

This e-road bike looks, rides and feels more like a traditional road bike
The HyDrive pedal assist system has a hub motor for a more natural ride feel
Easily change ride settings and see important info like speed and battery level with the intuitive HyDrive Bluetooth controller
The stable Endurance Geometry delivers comfort and confidence
Double your range with a 250 Wh plug-and-play Range Extender battery that sits in your bottle cage

Frame	100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
Fork	Domane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12×100 mm thru axle
Frame fit	Endurance

Weight	56 – 14.06 kg / 31 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Battery	250 Wh, integrated in down tube
Charger	2A, 42V output, 100V–240V AC input

*Shifter	Size: 49, 52 Shimano 105 R7025, short-reach lever, 11-speed
*Shifter	Size: 54, 56, 58, 61 Shimano 105 R7020, 11-speed
Front derailleur	Shimano 105 R7000, 31 mm clamp
Rear derailleur	Shimano 105 R7000, long cage, 34T max cog
*Crank	Size: 49 FSA Vero Pro, 50/34, 165 mm
	Size: 52 FSA Vero Pro, 50/34, 170 mm
	Size: 54, 56 FSA Vero Pro, 50/34, 172.5 mm
	Size: 58, 61 FSA Vero Pro, 50/34, 175 mm
Bottom bracket	Torque sensor, threaded, 110 mm spindle
Cassette	Shimano 105 HG700-11, 11-34, 11-speed
Chain	Shimano HG601, 11-speed
Max. chainring size	2x: 50/34

Hub front	Formula RX-812 alloy, sealed bearing, 6-bolt, 100×12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Hyena hub drive motor, 40 Nm, 250 W
Rim	Bontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×32 mm
Max tyre size	38mm without mudguards, 32mm with mudguards

*Saddle	Size: 49, 52 Bontrager Verse Short Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 61 Bontrager Verse Short Comp, steel rails, 145 mm width
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 49 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 38 cm width
	Size: 52 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 40 cm width
	Size: 54, 56 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
	Size: 58, 61 Bontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Head set	FSA Integrated, sealed cartridge bearing, 1-1/8″ top, 1.5″ bottom
Brake	Shimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin
Brake rotor	Shimano RT66, 6-bolt, 160 mm
Rotor size	Max brake rotor sizes: 160mm front & rear
