Article number:

5301850

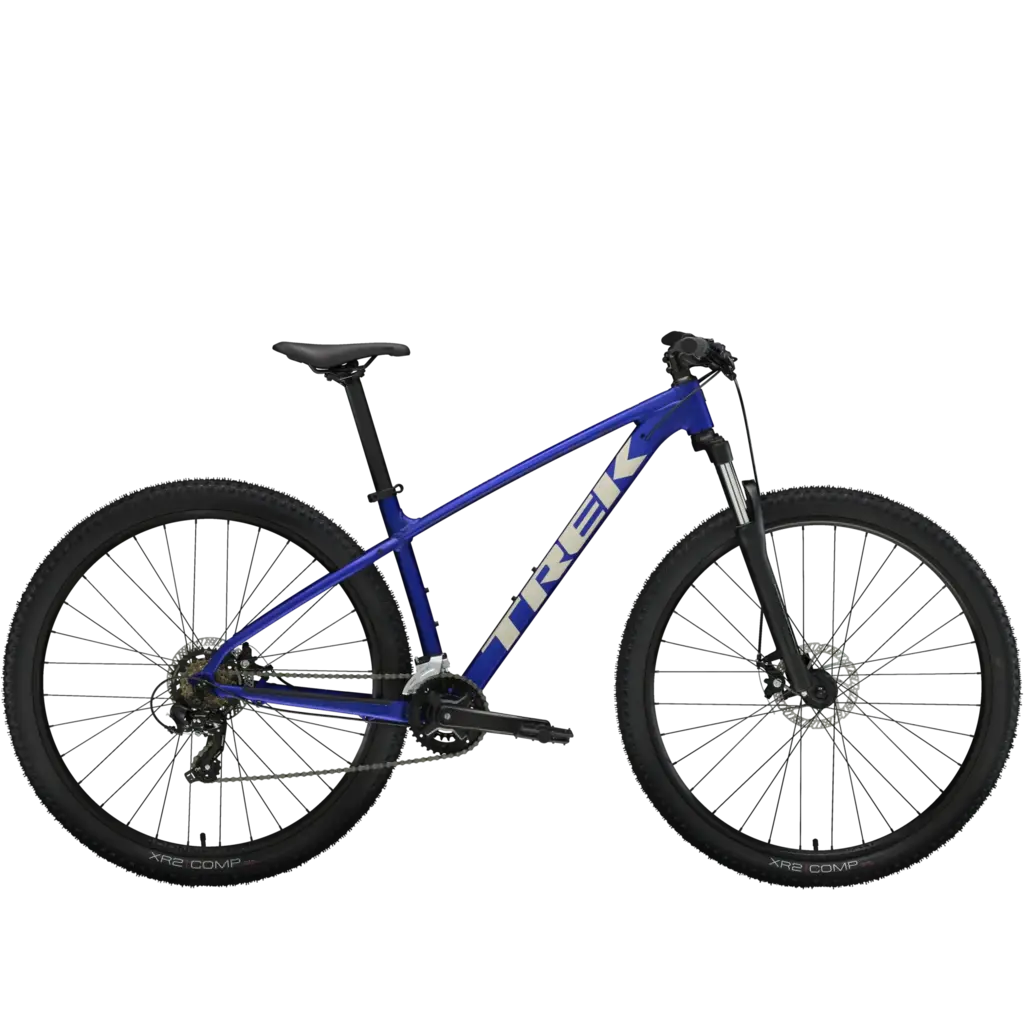

It’s ideal for riders who want a mountain bike with knobby tyres that can double as a rugged commuter. Disc brakes, front suspension, Shimano 14-speed shifting and mounts for a rack and mudguards make this a great bike for trail riders and campus commuters alike.

You want an introductory mountain bike at an incredible price, but also want a commuter that’s rugged enough to hop kerbs on the way to class.

A lightweight aluminium frame with internal routing to protect your cables and add to the bike’s sleek look, trustworthy 14-speed Shimano shifting with a wide range of gearing so you always have the right gear for your terrain, powerful mechanical disc brakes and a suspension fork that takes the edge off bumps and rough terrain.

The Marlin is made for any adventure. The rack and mudguard mounts make it a great choice for commuters who want to get a little rad on the way to class or the shops.

The Marlin Gen 2 gives you all-around versatility with fast-rolling tyres and balanced, neutral geometry that keeps you comfortable and in control off-road. No wonder it’s our best-selling mountain bike ever.
Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
Smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
Marlin models in XS and S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
Like every Trek, it’s backed by a lifetime warranty

*Frame	Size: XS , S Alpha Silver Aluminium, curved top tube, internal routing, chainstay disc brake mount, rack and kickstand mount, 135×5 mm QR
*Frame	Size: M , ML , L , XL , XXL Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
*Fork	Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5″ wheel, 100 mm QR, 80 mm travel
	Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
	Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
Max compatible fork travel	100mm (XS and S: 490mm axle-to-crown, M and up: 509mm axle-to-crown)

Skewer rear	152×5 mm QR
Max tyre size	Frame: 29×2.20″ (XS & S: 27.5×2.40″), Fork: See manufacturer

Drivetrain

*Shifter	Size: XS , S , M , ML , L , XL , XXL Shimano EF500, 8-speed
*Shifter	Size: XS , S , M , ML , L , XL , XXL Shimano Altus EF500, 7-speed
Front derailleur	Shimano Altus M315, 34.9 mm clamp, top swing, dual pull
Rear derailleur	Shimano Tourney TY300
*Crank	Size: XS , S , M ProWheel TM-CY10, 36/22, 170 mm length
*Crank	Size: ML , L , XL , XXL ProWheel TM-CY10, 36/22, 175 mm length
Bottom bracket	VP BC73, 73 mm, threaded cartridge
Cassette	Shimano TZ500, 14-34, 7-speed
Chain	KMC Z7, 7-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x/2x: 34T, 3x: 42T

Saddle	Bontrager Verse Short, stainless steel rails
*Seatpost	Size: XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XS , S Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
*Handlebar	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Endurance Comp, lock-on
*Stem	Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
	Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
	Size: XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length
Head set	Semi-integrated, 1-1/8″
*Brake	Size: XS , S , M , ML , L , XL , XXL Tektro MD-M280 mechanical disc
*Brake	Size: XS , S , M , ML , L , XL , XXL Tektro MD-M281 mechanical disc
Brake rotor	Tektro, 6-bolt, 160mm

Weight	M – 14.60 kg / 32.19 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
