Sale!

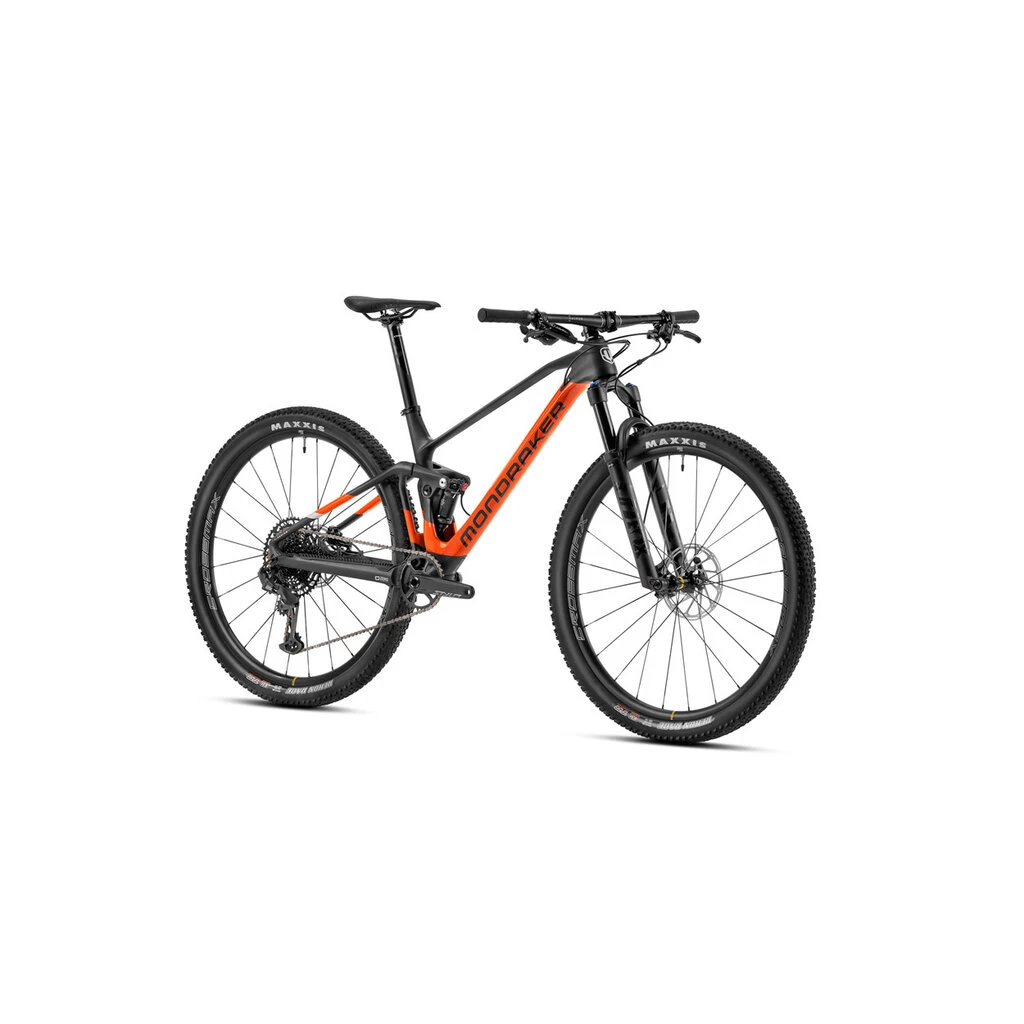

Mondraker F-Podium Carbon Carbon/Orange L

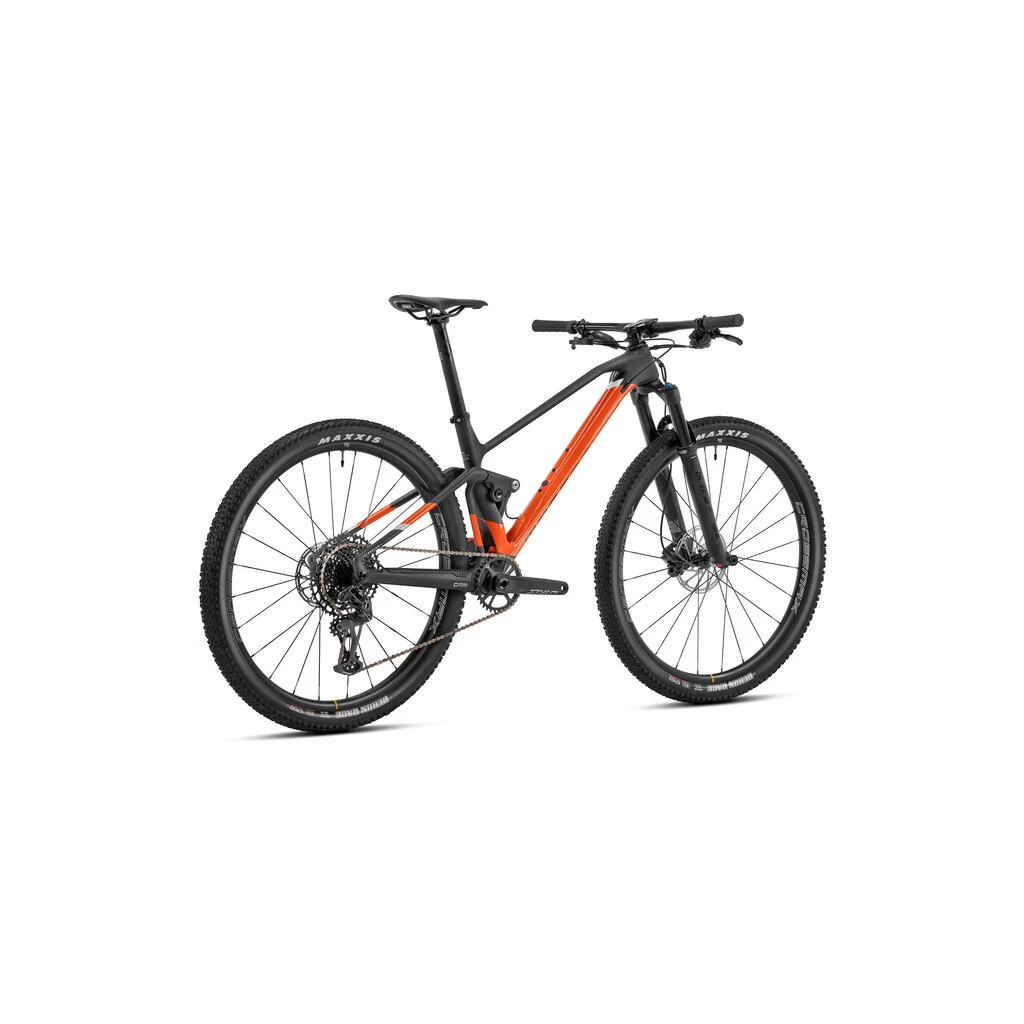

Mondraker F-Podium Carbon Carbon/Orange L - Image 2

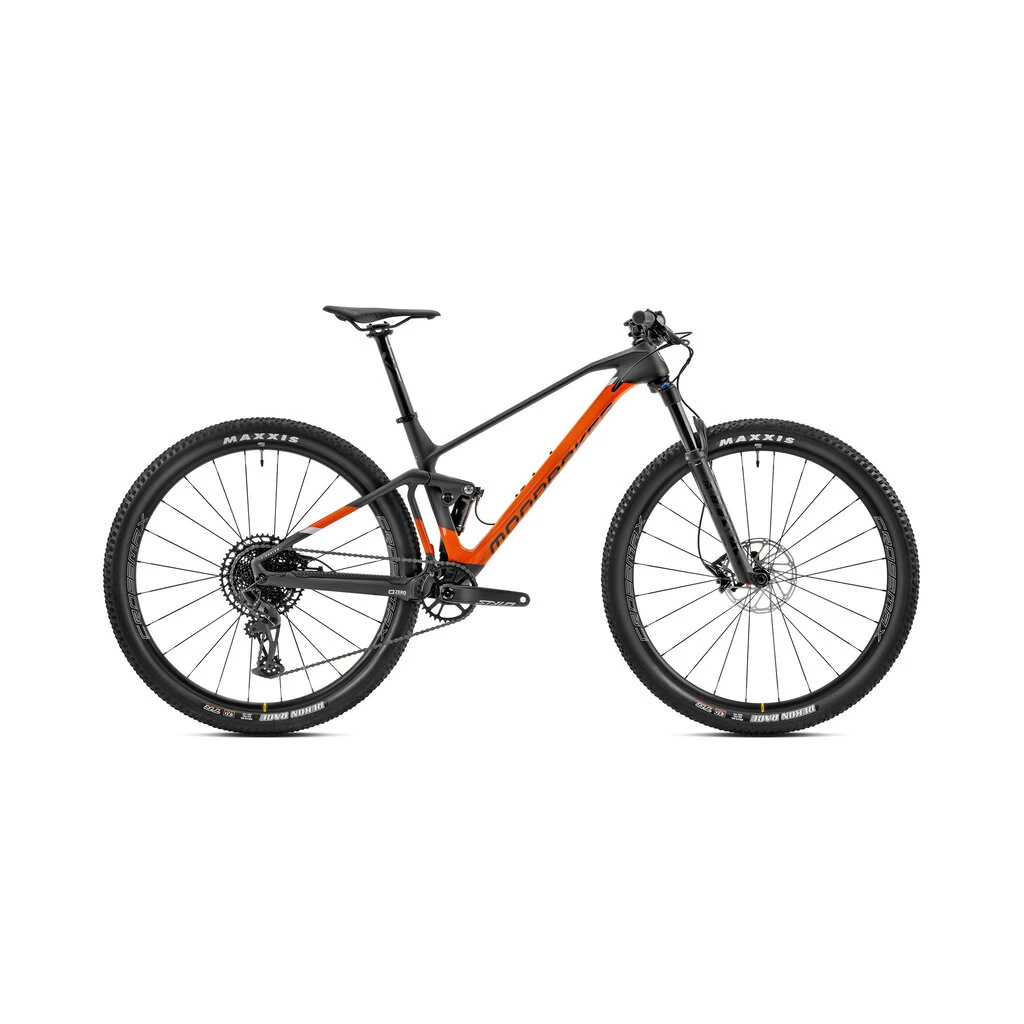

Mondraker F-Podium Carbon Carbon/Orange L - Image 3

Mondraker F-Podium Carbon Carbon/Orange L

Original price was: $369.00.Current price is: $96.99.

SKU: MDXC23023054 Categories: Bikes, Mountain

Safe Transactions, Always
Quality that lasts, prices that don't.
Top-Notch Quality
Discover a world of quality products.

Description
Reviews (0)

Article number:

MDXC23023054

Thanks to its ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and its full carbon STEALTH AIR FULL CARBON frame, the F-PODIUM will make any XC event child’s play. 100mm of rear travel combined with an effective 110mm fork keep the wheels pinned to the ground. If we add to this mix the Mavic Crossmax wheels and the 2.35″ Maxxis Rekon Race tyres you can enjoy both the most demanding climbs and the steepest descents in complete safety. An exclusive bike at a price point that won’t break the bank.

TECHNICAL SPECS

Frame

F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.

Sizes

S: 390mm / M: 420mm / L: 470mm / XL: 510mm
Rear shock

Fox Float DPS SV Performance Elite, 185×47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

Firm compression, light rebound, air volume spacer 0.2
Fork

Fox 34 Step Cast Float GRIP EVOL Performance, 110mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, rebound, air preload

Fork remote

Fox dual pull
Headset

Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom

Stem

MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
Handlebar

ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore

Grips

ONOFF Twin, 1lock-on, 135mm
Seatpost

ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm

Saddle

Fizik Antares R7
Front brake

Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

Rear brake

Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever

Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

Rims

Mavic Crossmax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Spokes

Mavic straight-pull double butted, contactless lacing

Front hub

Mavic, Boost 15x110mm, IS 6 bolts
Rear hub

Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts

Front tire

Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead
Rear tire

Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead

Crankset

Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
Rings

34T, steel, X-Sync 2

Bottom bracket

Sram DUB BSA, sealed bearings, 73mm
Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1

Casette

Sram PG-1230, 11-50T, 12s

Derailleur hanger

Sram UDH

Weight

12,4 kg

01. FRAME	F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 100mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket
01A. FRAME	tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
02. FORK	Fox 34 Step Cast Float GRIP EVOL Performance, 110mm, tapered steerer tube,15x110mm Boost axle, offset 44mm. Settings: remote 2pos Push-unlock, rebound, air preload
03. FORK REMOTE	Fox dual pull
04. REAR SHOCK	Fox Float DPS SV Performance Elite, 185×47,5mm. Settings: 2 position remote compression (open/lock), low-speed rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings
05. SHOCK SETTINGS	Firm compression, light rebound, air volume spacer 0.2
06. HEADSET	Acros AZX-239 R1 Block Lock, ZS44/28.6 top, ZS56/40 bottom
07. STEM	MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5 degree, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm
08. HANDLEBAR	Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9 degree backsweep, 0 degree upsweep, 31.8mm barbore
09. GRIPS	Onoff Twin, 1lock-on, 135mm
10. SEATPOST	Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
11. SADDLE	Fizik Antares R7
12. FRONT BRAKE	Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
13. REAR BRAKE	Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
14. BRAKE LEVER	Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
15. FRONT HUB	Mavic, Boost 15x110mm, IS 6 bolts
16. REAR HUB	Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
17. FRONT TIRE	Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead
18. REAR TIRE	Maxxis Rekon Race 29×2.35, EXO protection, tubeless ready, 120TPI, folding bead
19. CRANKSET	Truvativ Stylo 6K Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm
20. RINGS	34T, steel, X-Sync 2
21. BOTTOM BRACKET	Sram DUB BSA, sealed bearings, 73mm
22. PEDALS	N/A
23. CHAIN	Sram SX Eagle, 12s, Powerlock
24. REAR DERAILLEUR	Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
25. CASSETTE	Sram PG-1230, 11-50T, 12s
26. DERAILLEUR HANGER	Sram UDH
27. SIZES	S: 390mm / M: 420mm / L: 470mm / XL: 510mm
