Article number:	5295475
Delivery time:	out of stock with us – may be in stock with supplier to order – if you are able to order above we will order it in for you – allow an extra 7 days for your delivery/pick up.

It finds the perfect balance between price and performance with an upgraded RockShox suspension fork that makes quick work of rocks and bumps in your path and the huge gearing range of a SRAM 12-speed SX Eagle drivetrain.

You want a go-anywhere trail bike that’s got upgrades where it matters most, but won’t break the bank. You want to build skills on the trail, and need a bike with confidence-inspiring geometry and upgraded components that can keep up with your progress.

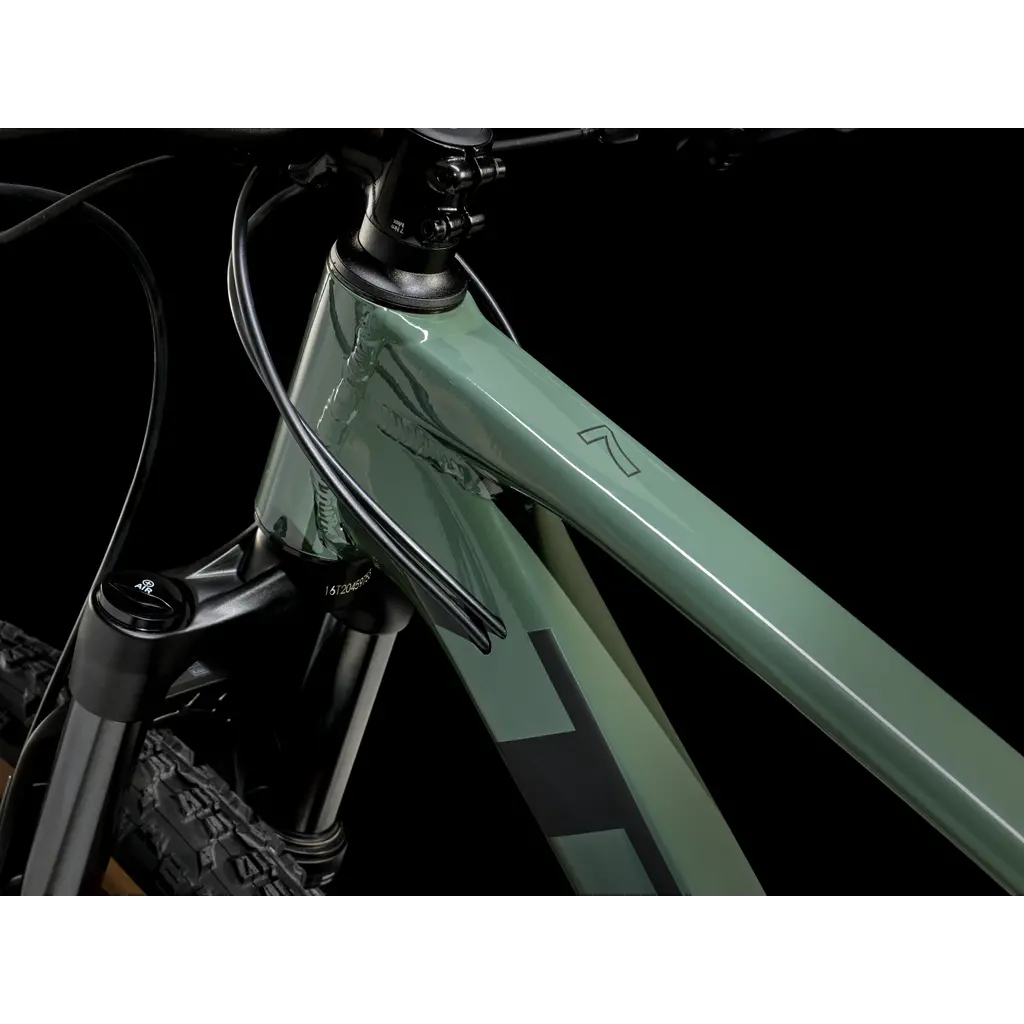

A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and the bike looking sleek. An upgraded RockShox suspension fork smooths out rowdy trails, 12-speed SRAM SX Eagle shifting and the serious stopping power of hydraulic disc brakes.

The Marlin 7 is the go-to trail bike for those wanting to build skills on the singletrack and get the right bang for their buck with upgraded suspension and confidence-inspiring geometry.

The Marlin Gen 3 gives you serious trail capability with bigger tyre clearance, internal dropper post routing, ThruSkew rear axle and longer, slacker geometry that gives you more stability on steeper trails and at higher speeds
Its upgraded RockShox fork gives you 100 mm of suspension for turning rocks and roots in the trail into smooth-sailing
Rack and mudguard mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
Internal routing makes it easy to add a dropper post that lets you lower your saddle on the fly for more confident descending
Marlin models in sizes XXS and XS have a curved top tube and lower standover height that makes it easier for smaller riders to mount and dismount

*Frame	Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew
*Frame	Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135×5 mm ThruSkew
*Fork	Size: XS , S RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42 mm offset for 27.5″ wheel, 100 mm QR, 100 mm travel
*Fork	Size: M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46 mm offset for 29″ wheel, 100 mm QR, 100 mm travel
Max compatible fork travel	120mm, XXS: 80mm

Hub front	Formula DC-20 LW, alloy, 6-bolt, 5×100 mm QR
Hub rear	Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
Rim	Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve

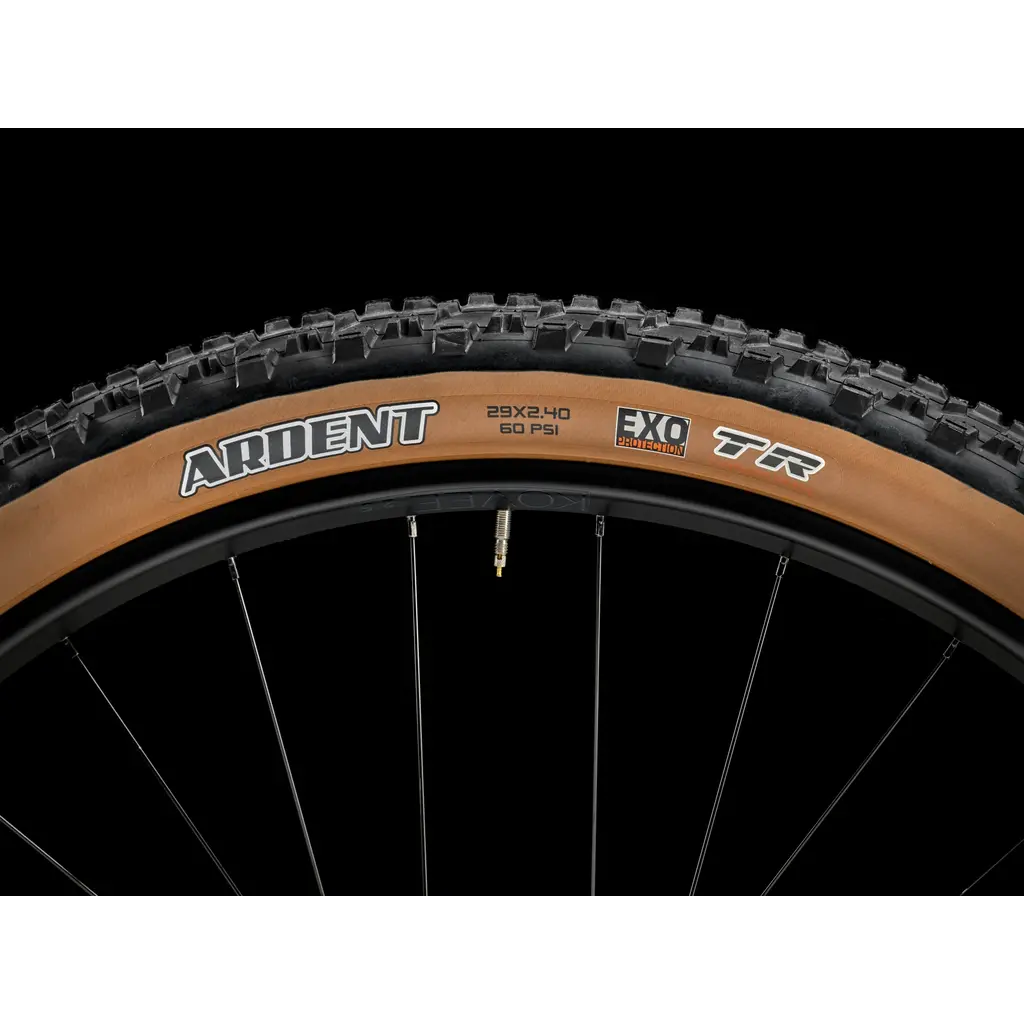

*Tyre	Size: XS , S Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 27.5×2.40″
*Tyre	Size: M , ML , L , XL , XXL Maxxis Ardent, tubeless ready, EXO casing, folding bead, 60tpi, 29×2.40″
Max tyre size	Frame: 29×2.40″ (XXS: 26×2.40″, XS & S: 27.5×2.40″), Fork: See manufacturer

Shifter	SRAM SX Eagle, 12-speed

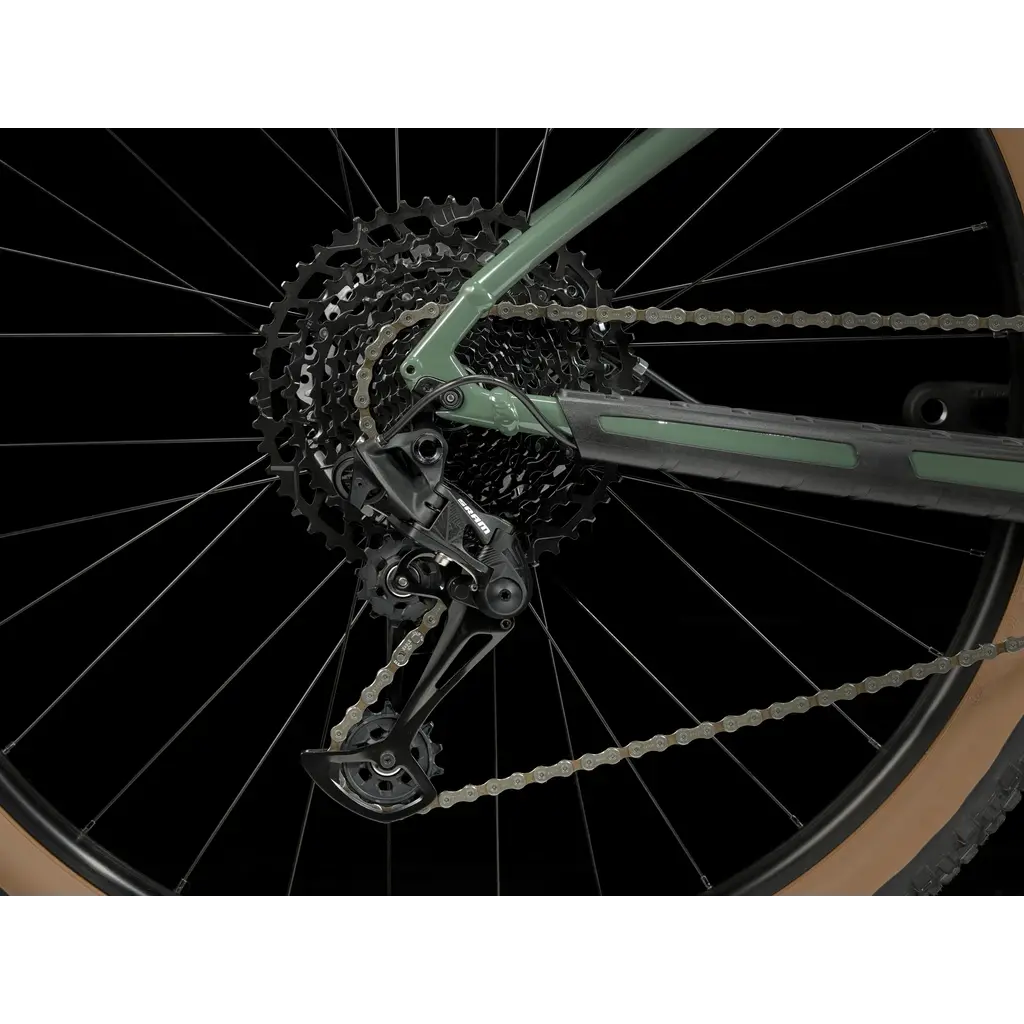

Rear derailleur	SRAM SX Eagle

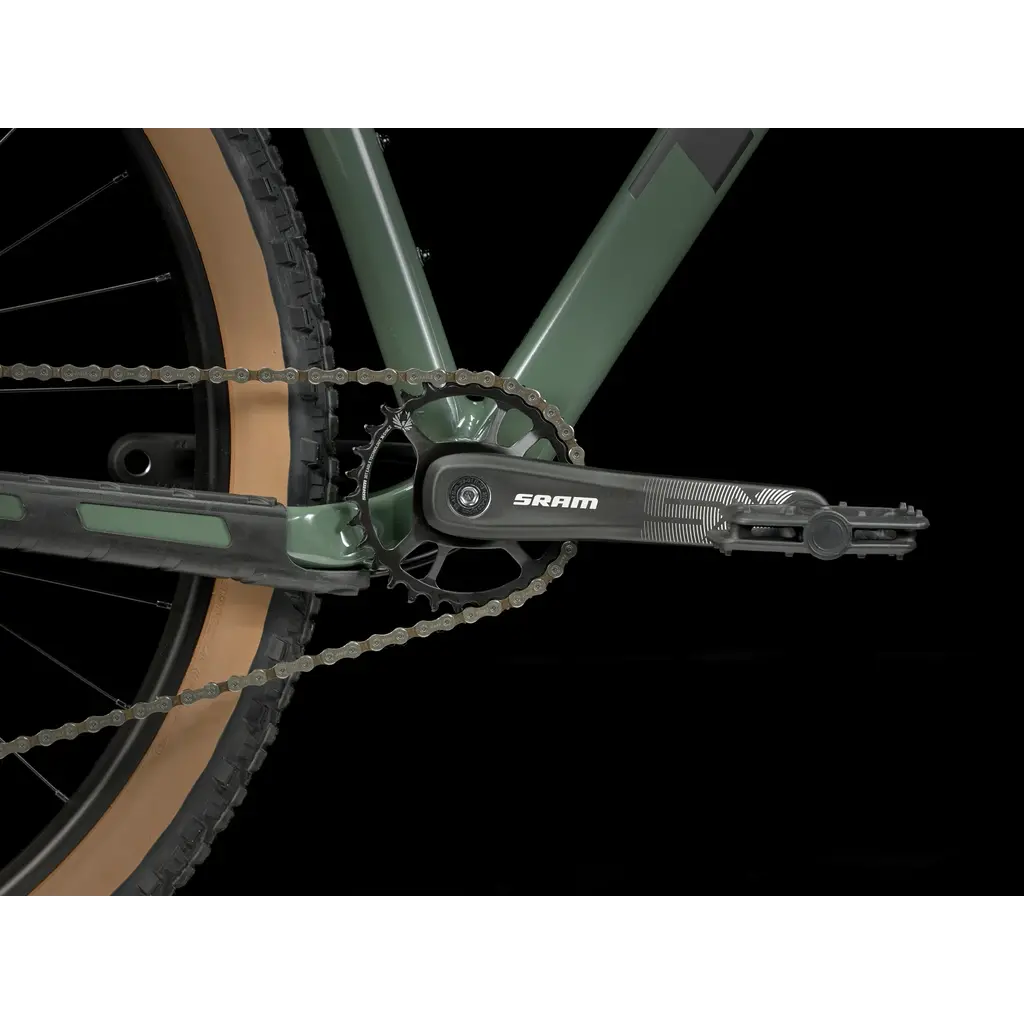

*Crank	Size: XS , S , M SRAM SX Eagle, 30T steel ring, 49 mm chainline, 170 mm length
*Crank	Size: ML , L , XL , XXL SRAM SX Eagle, 30T steel ring, 49 mm chainline, 175 mm length
Bottom bracket	Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette	SRAM PG-1210 Eagle, 11-50, 12-speed
Chain	SRAM SX Eagle, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x: 34T, 2x: 36/22

Saddle	Bontrager Verse Short, stainless steel rails
*Seatpost	Size: XS , S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
	Size: M TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
	Size: ML , L , XL , XXL TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
*Handlebar	Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
	Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
	Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XS , S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 35 mm length
	Size: M , ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
	Size: XL Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length
Head set	Semi-integrated, 1-1/8″

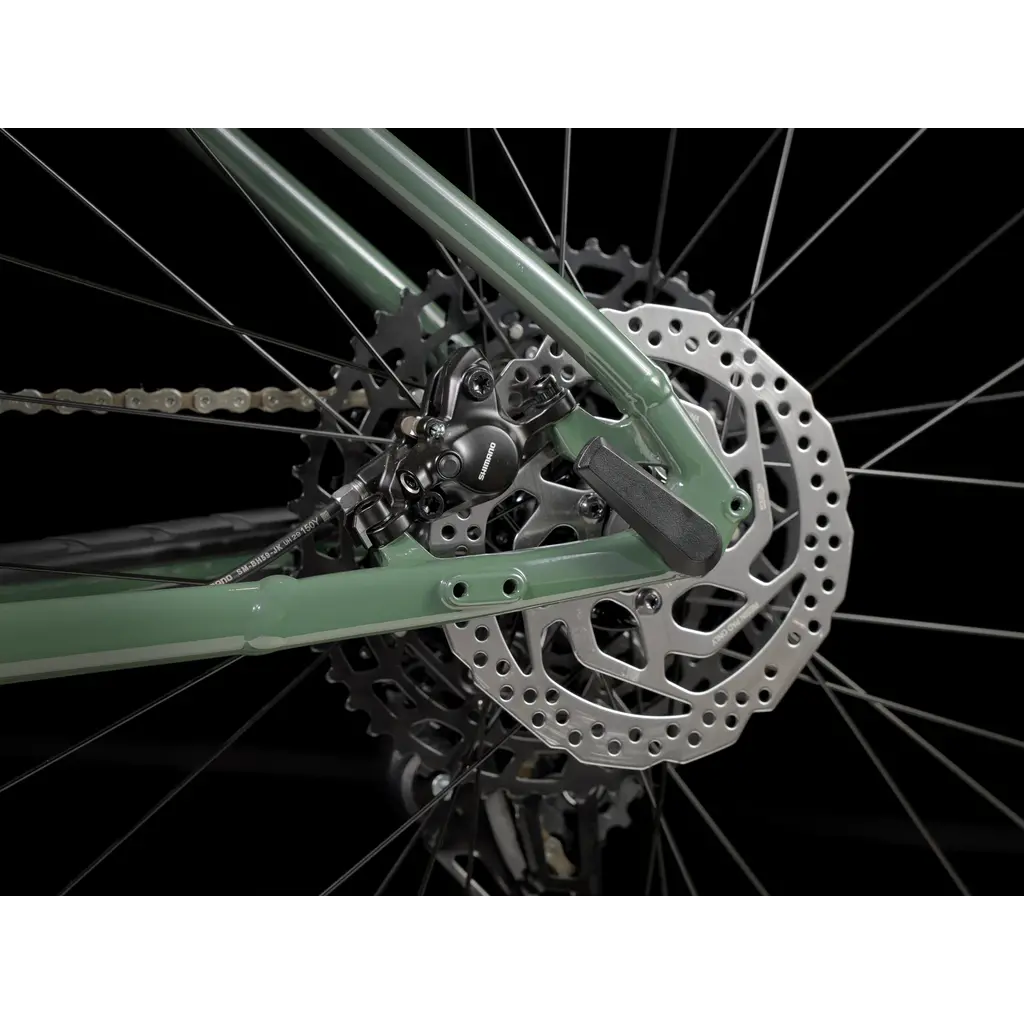

Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm
*Brake rotor	Size: M , ML , L , XL , XXL Shimano RT26, 6-bolt,180 mm
Brake Set	Shimano MT200 hydraulic disc
Rotor size	Max brake rotor sizes – Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer

Weight	M – 14.85 kg / 32.74 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
