With 150 mm front and 140 mm rear trail-taming suspension, a Shimano 1×12 drivetrain, a dropper post for getting low on descents and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.

You’re ready to go full suspension, and you want a versatile trail bike at a great value. You want a ride that’s sure-footed, capable and responsive, so you can stay in control no matter where you’re riding.

A lightweight aluminium frame with progressive trail geometry. A 150 mm RockShox Recon Silver fork, 140 mm of rear travel with an X-Fusion Pro 2 shock, a durable 12-speed Shimano Deore drivetrain, dropper post and hydraulic disc brakes.

You get full suspension performance without the sticker shock. The Fuel EX 5 has the same frame tech and features as its pricier partners, with parts chosen to keep the price tag low and stoke level high.

The Fuel EX Gen 6 gives you 140/150 mm of travel with extra adjustability features and more stable handling, plus a more robust frame with internal storage
We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
The dropper post lets you lower your saddle on the fly so it’s out of the way on descents
The RockShox fork’s DebonAir spring can easily be adjusted for a specific rider weight, and it’s lighter than a coil spring
Its tubeless-ready wheels and tyres will boost traction and help to reduce flat tyres on the ride

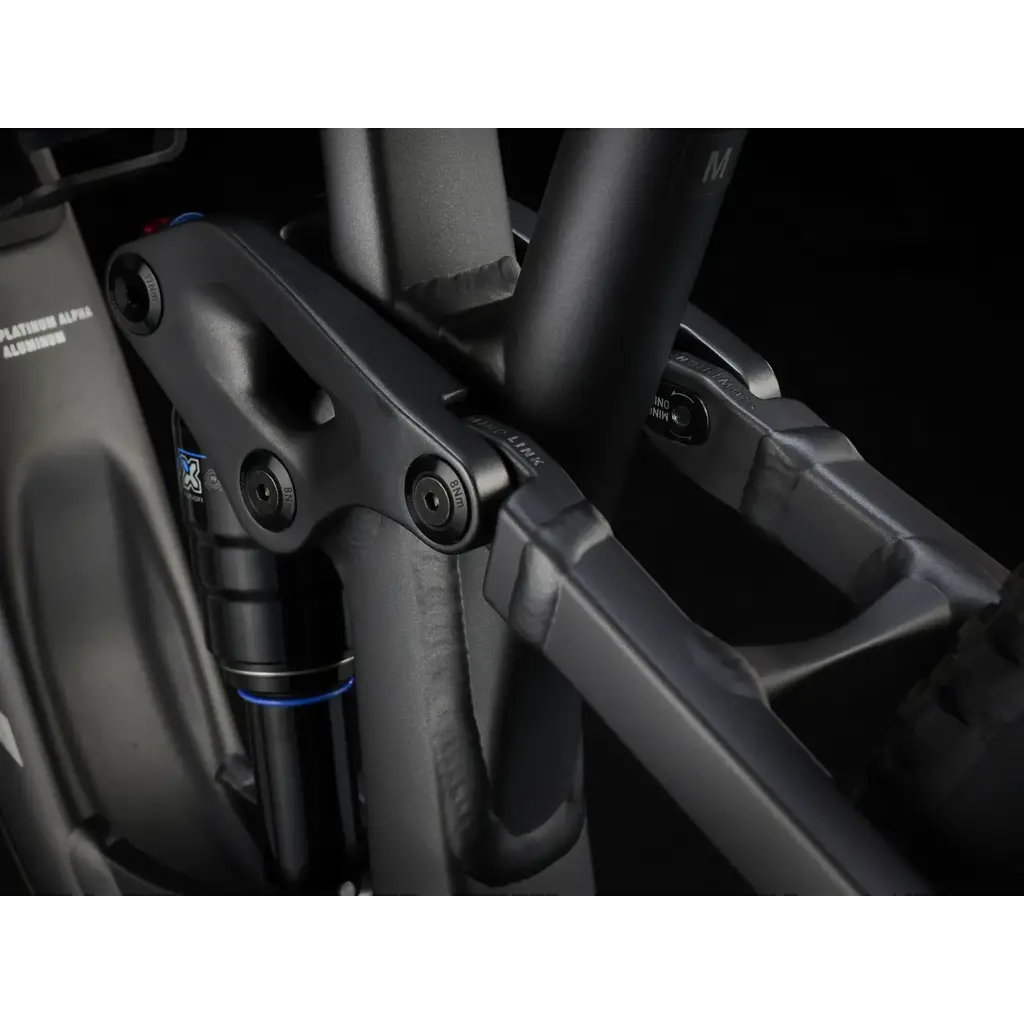

Frame	Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
*Fork	Size: XS , S RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel
*Fork	Size: S , M , ML , L , XL , XXL RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel

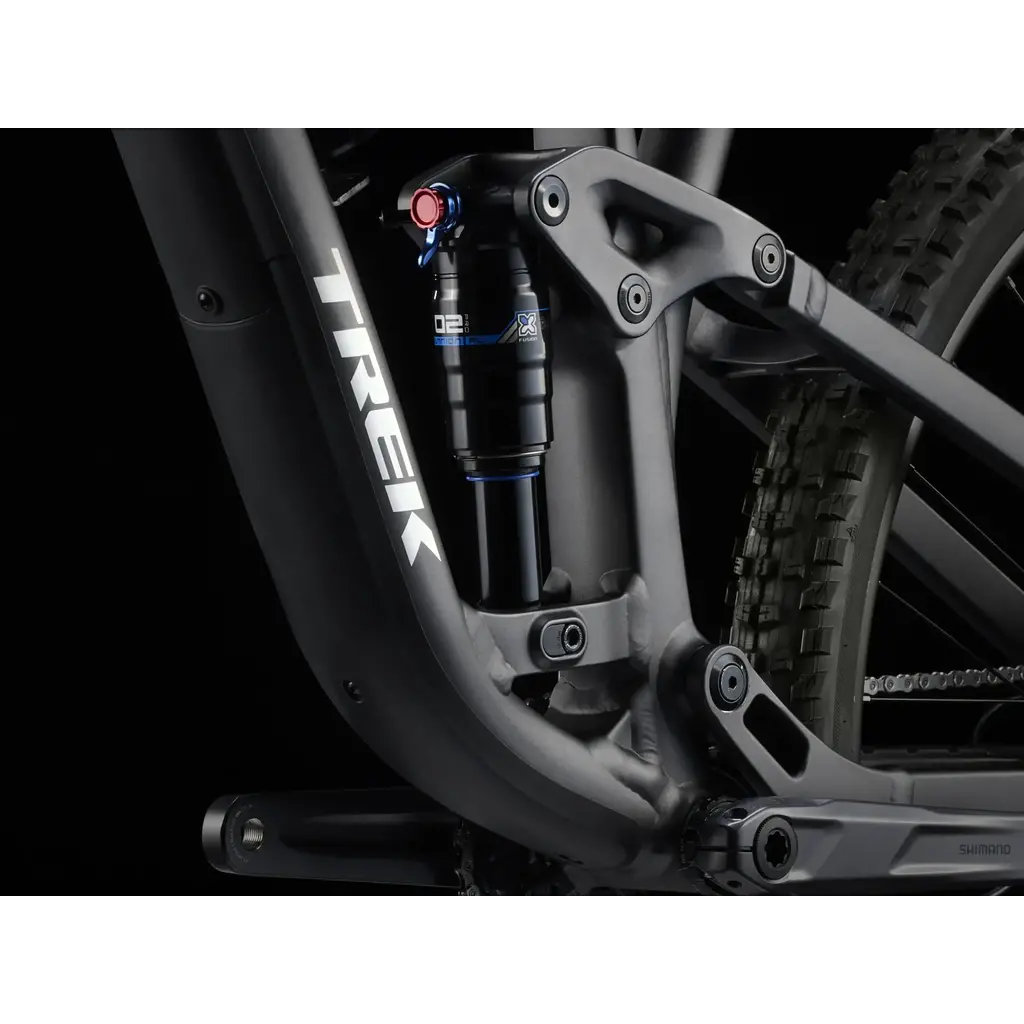

Shock	X-Fusion Pro 2, 2-position damper, 185 mm x 55 mm
Max compatible fork travel	160mm

Hub front	Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle
Hub rear	Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever

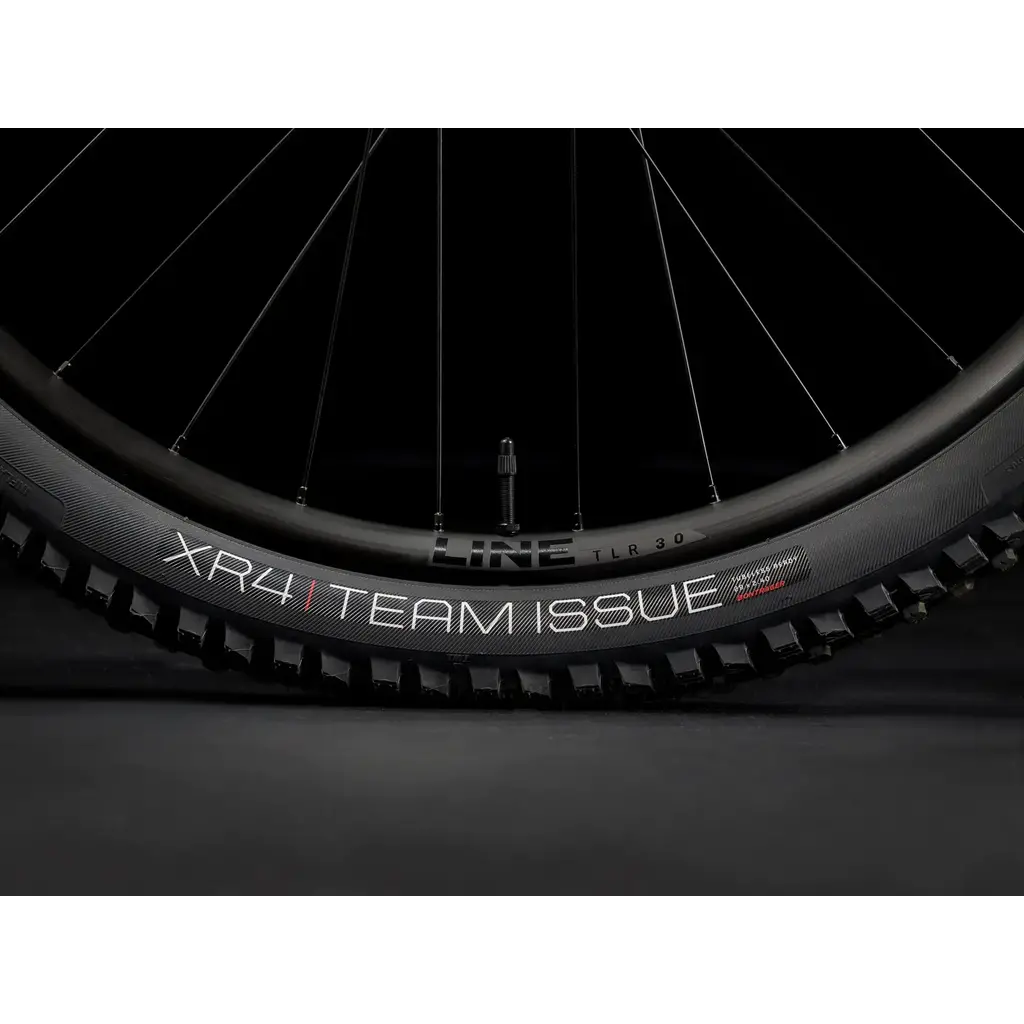

Rim	Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve
*Tyre	Size: XS , S Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5×2.40″
*Tyre	Size: S , M , ML , L , XL , XXL Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29×2.40″
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager TLR
Max tyre size	Frame: 29×2.50″ (XS & S: 27.5×2.50″), Fork: See manufacturer

Shifter	Shimano Deore M6100, 12-speed

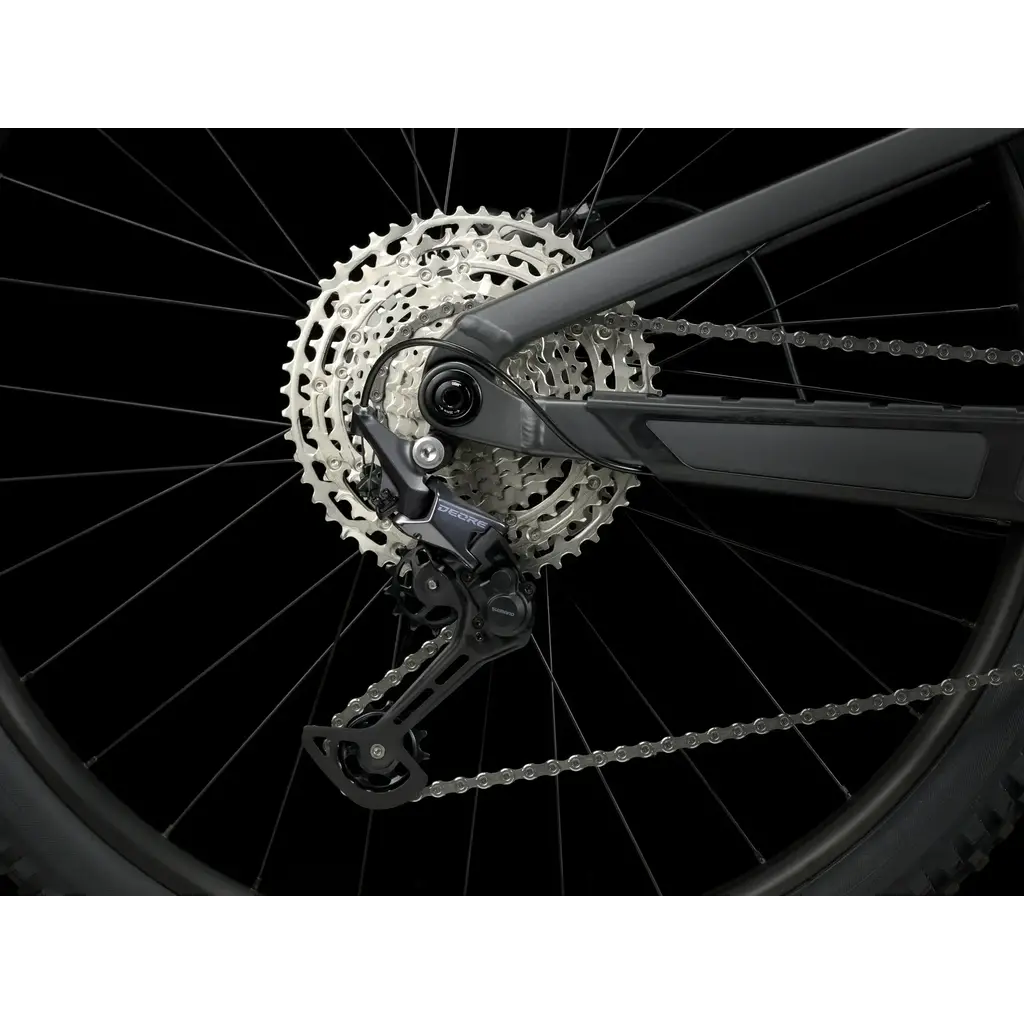

Rear derailleur	Shimano Deore M6100, long cage
Crank	Shimano MT512, 30T ring, 55 mm chain line, 170 mm length
Bottom bracket	Shimano BB-MT501 BSA
Cassette	Shimano Deore M6100, 10-51, 12-speed
Chain	Shimano Deore M6100, 12-speed
Max. chainring size	1x: 34T round, 32T oval, min 28T

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XS , S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
	Size: M , ML TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
	Size: L , XL , XXL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar	Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length
*Stem	Size: M , ML , L , XL , XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set	Integrated cartridge bearing, 1-1/8″ top, 1.5″ bottom, angle adjust cup compatible

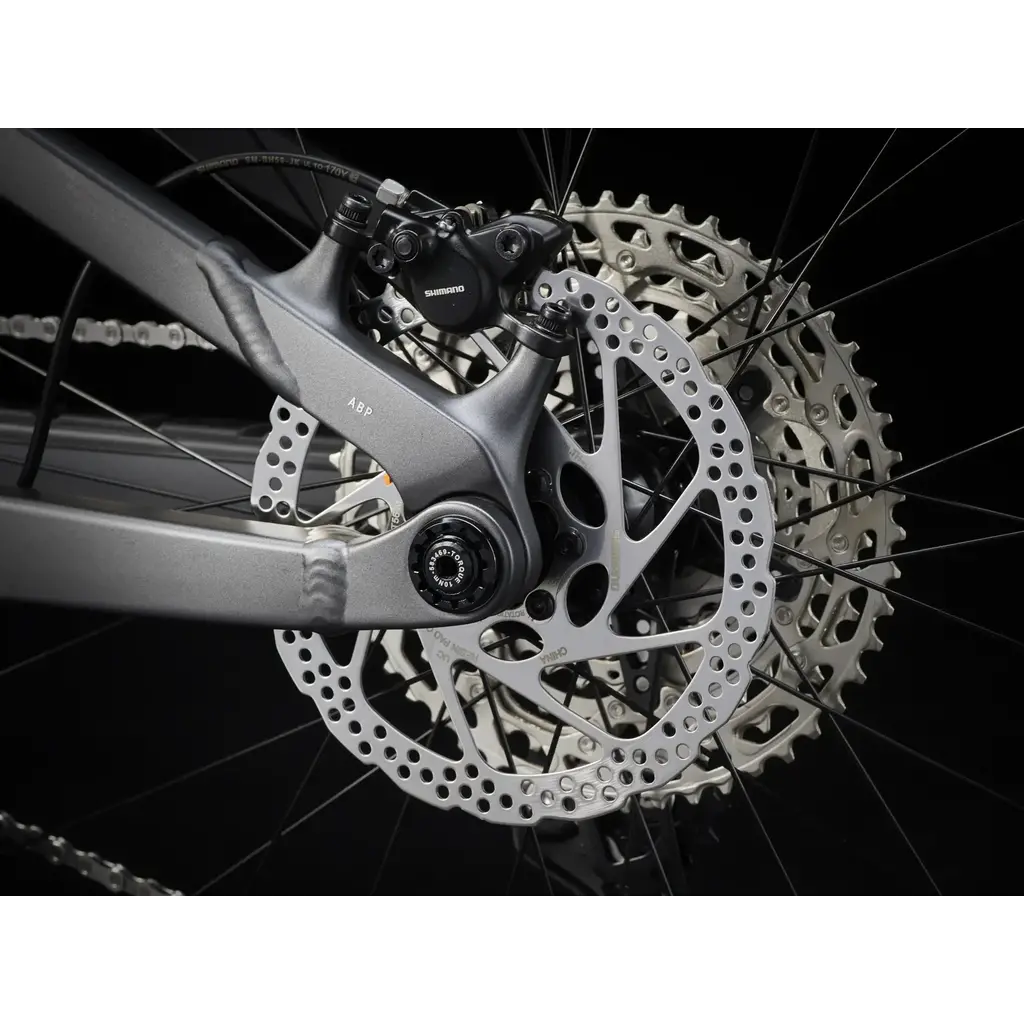

Brake	Shimano hydraulic disc, MT201 lever, MT200 calliper
Brake rotor	Shimano RT56, 6-bolt, 180 mm
Rotor size	Max brake rotor sizes – Frame: 203mm, Fork: see fork manufacturer

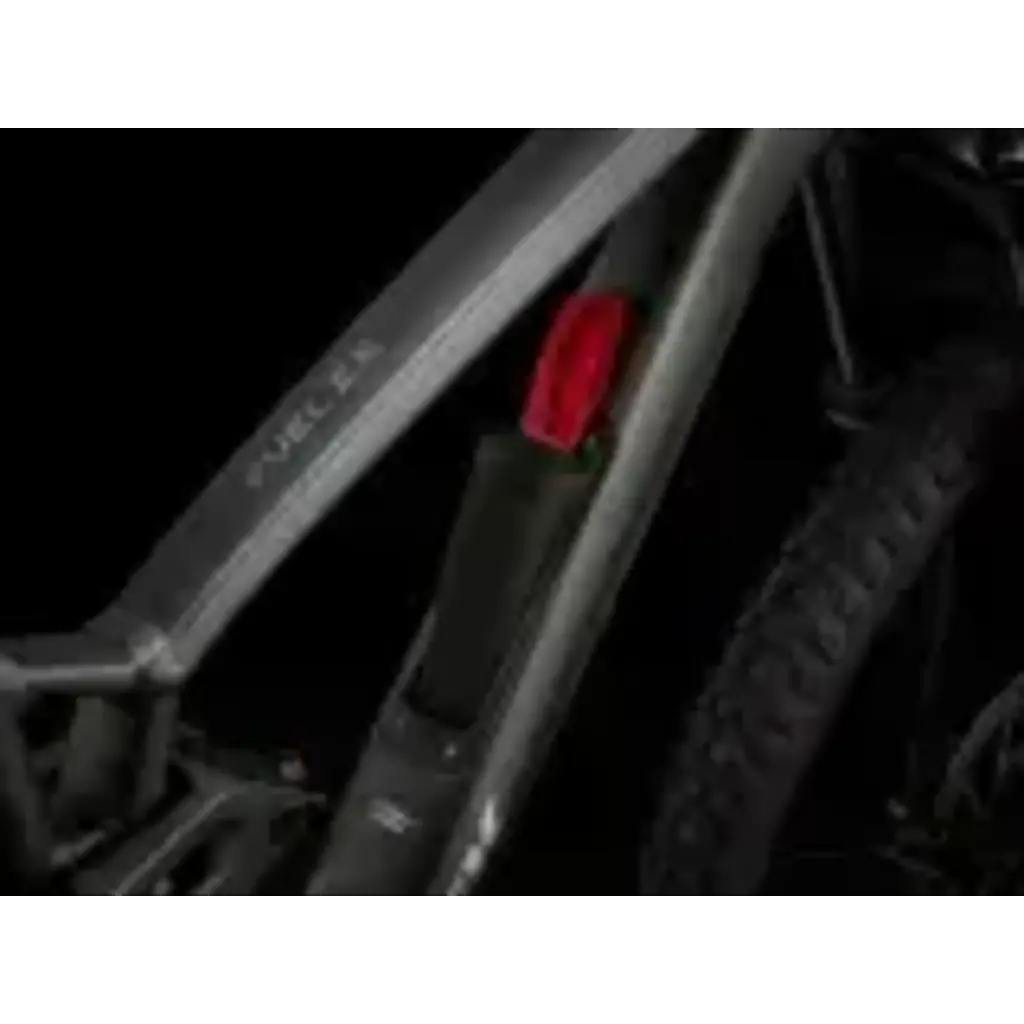

Bag	Bontrager BITS Internal Frame Storage Bag

Weight	M – 15.80 kg / 34.84 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
