Sale!

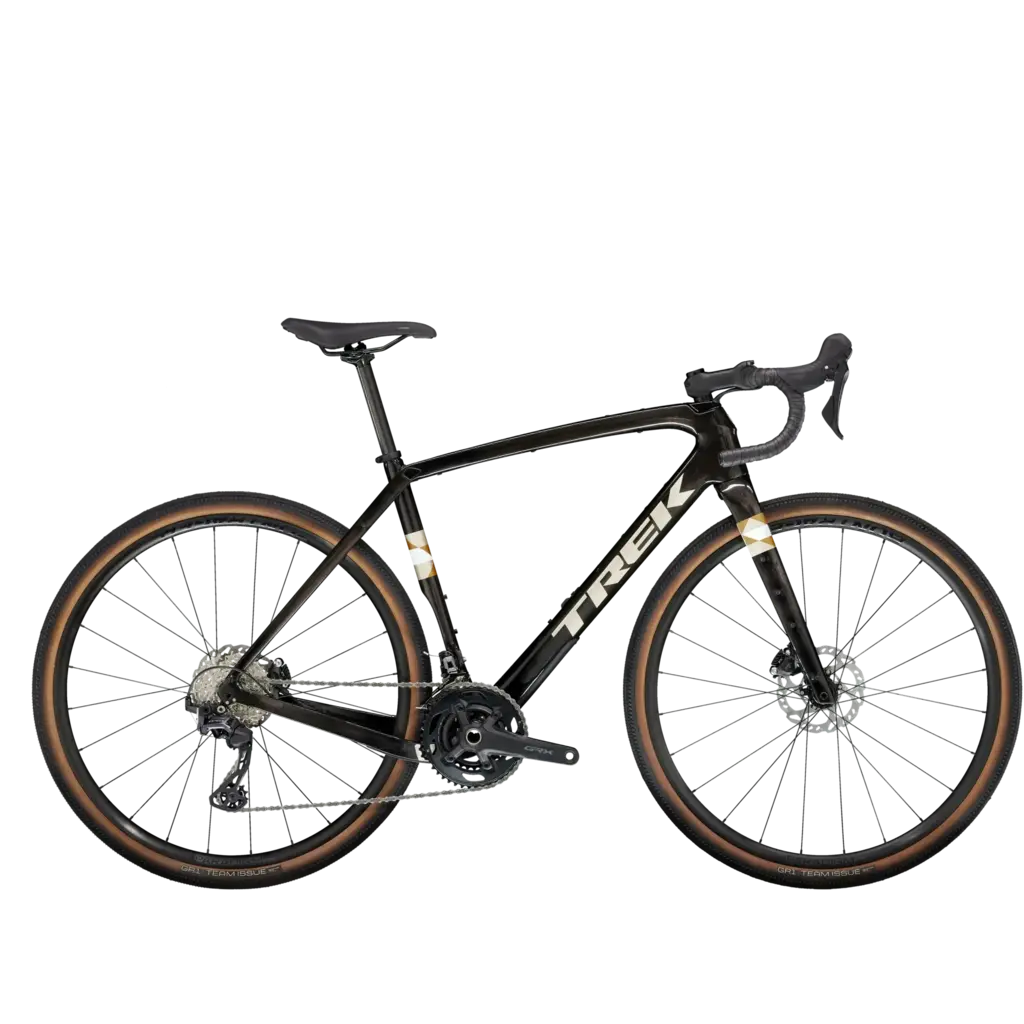

2024 Trek Checkpoint SL 5 – Deep Smoke

Original price was: $368.00.Current price is: $95.99.

SKU: YMLRZ 5298082 Categories: Bikes, Gravel Bike

Safe Transactions, Always
Quality that lasts, prices that don't.
Top-Notch Quality
Discover a world of quality products.

Article number:	5298082
Delivery time:	Pick up same day if ordered by 12pm (if in stock)

It’s built with lightweight OCLV Carbon, a 2×12 Shimano GRX drivetrain, terrain-smoothing damped IsoSpeed, nimble yet stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

Chamois or cut-off shorts, bikepacking trip or brutal day of gravel racing – you’re going to ride far and have a great time. You want a bike that’s both fast and comfortable, and you want endless options for loading up gear and heading to gravel races and on everyday adventures.

A 500 Series OCLV Carbon frame with damped rear IsoSpeed and carbon armour, progressive geometry that’s stable at speed and efficient when you’re grinding up a climb, internal frame storage, hidden cables that won’t interfere with bags and integrated frame, fork, rack and mudguard mounts. Plus, a carbon fork, a 2×12 Shimano GRX drivetrain with lower gears for grinding up hills or through rough gravel and Paradigm SL wheels. You can even run a dropper post to get low on long descents.

Light, fast, comfortable. The Checkpoint SL 5 gives you the unmatched ride quality of an OCLV Carbon frame with IsoSpeed and gravel-specific geometry, plus internal storage and a drivetrain built for rough terrain.

It’s equipped with rugged, gravel-focused 2×12 Shimano GRX drivetrain that’s made for tackling the roads less travelled

Massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions
Fork mounts, frame mounts, and rack and mudguard mounts allow you to carry all the gear you need for day trips and bikepacking adventures
A sleek internal storage compartment gives you a versatile spot to stow tools and gear
The damped, controlled rebound of the IsoSpeed decoupler soaks up fatiguing bumps without bouncing you around

Frame	500 Series OCLV Carbon, IsoSpeed, internal cable routing, downtube storage door, 3S chain keeper, T47 BB, rack and mudguard mounts, integrated frame bag mounts, flat-mount disc, dropper post compatible, 142×12 mm thru axle
Fork	Trek Checkpoint, full carbon, tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight	56 – 9.65 kg / 21.28 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter	Shimano GRX RX610, 12-speed
Front derailleur	Shimano GRX RX820, braze-on, down swing
Rear derailleur	Shimano GRX RX820, 36T max cog
*Crank	Size: 49 Shimano GRX RX610, 46/30, 165 mm length
	Size: 52 Shimano GRX RX610, 46/30, 170 mm length
	Size: 54, 56 Shimano GRX RX610, 46/30, 172.5 mm length
	Size: 58, 61 Shimano GRX RX610, 46/30, 175 mm length
Bottom bracket	Praxis, T47 threaded, internal bearing
Cassette	Shimano 105 7100, 11-36, 12-speed
Chain	Shimano SLX M7100, 12-speed
Max. chainring size	1x: 46T, 2x: 50/37

Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle
Skewer front	Bontrager Switch thru axle, removable lever
Hub rear	Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142×12 mm thru axle
Skewer rear	Bontrager Switch thru-axle, removable lever
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Tyre	Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700 x 40 c
Tyre part	Bontrager TLR sealant, 180 ml/6 oz
Rim strip	Bontrager Aeolus XXX rim strip
Max tyre size	700×45 mm / 650×2.10″

*Saddle	Size: 49, 52 Bontrager Verse Comp, steel rails, 155 mm width
*Saddle	Size: 54, 56, 58, 61 Bontrager Verse Comp, steel rails, 145 mm width
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
*Handlebar	Size: 49 Bontrager Elite Gravel, 38 cm width
	Size: 52 Bontrager Elite Gravel, 40 cm width
	Size: 54, 56 Bontrager Elite Gravel, 42 cm width
	Size: 58, 61 Bontrager Elite Gravel, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 49 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 61 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor	Shimano RT70, CentreLock, 160 mm
Rotor size	Max brake rotor sizes: 160 mm front and rear
